磁材
有線電視設備（CATV）用磁芯
有線電視設備（CATV）用磁芯
有線電視設備（CATV）用磁芯
有線電視設備（CATV）用磁芯概述：
????????射頻寬帶磁芯是有線電視設備中的關鍵器件，主要用于信號放大器，光信號放大器，分支器、分配器等。公司在該領域有十多年的研究和生產經驗。
有線電視設備（CATV）用磁芯材料特性表：
| 材質 | 初始磁導率μi | 相對損耗因子tanδ/μi | 居里溫度Tc | 密度d | 電阻率ρ | |
| ±25% | ＜n×106 | MHZ | ℃（≥） | g/cm3 | Ω·m | |
| QR100 | 100 | 45 | 0.3 | 280 | 5 | 106 |
| QR800 | 800 | 180 | 0.3 | 160 | 4.8 | 106 |
| QR850 | 850 | 130 | 4.8 | 106 | ||
| QR950 | 950 | 110 | 4.9 | 106 | ||
| QR1K | 1000 | 40 | 0.3 | 150 | 5 | 106 |
| QR1K5 | 1500 | 50 | 0.3 | 100 | 5 | 106 |
| QR2K | 2000 | 30 | 0.1 | 100 | 5 | 106 |
| QR2K5 | 2500 | 55 | 0.1 | 90 | 5 | 106 |
| QR2K-16 | ||||||
| QR3K | 3000 | 60 | 0.1 | 70 | 5 | 107 |

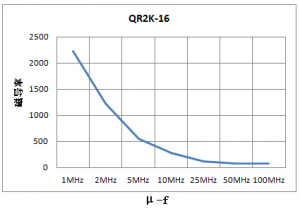

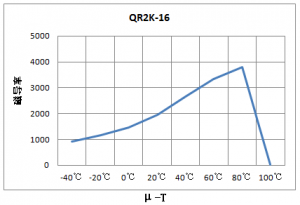

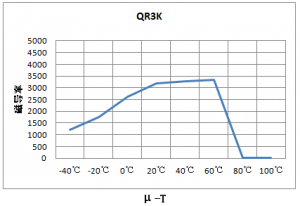

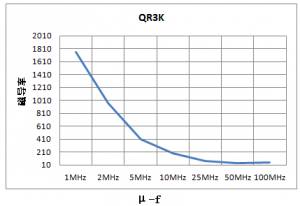

有線電視設備（CATV）用磁芯特性曲線表：

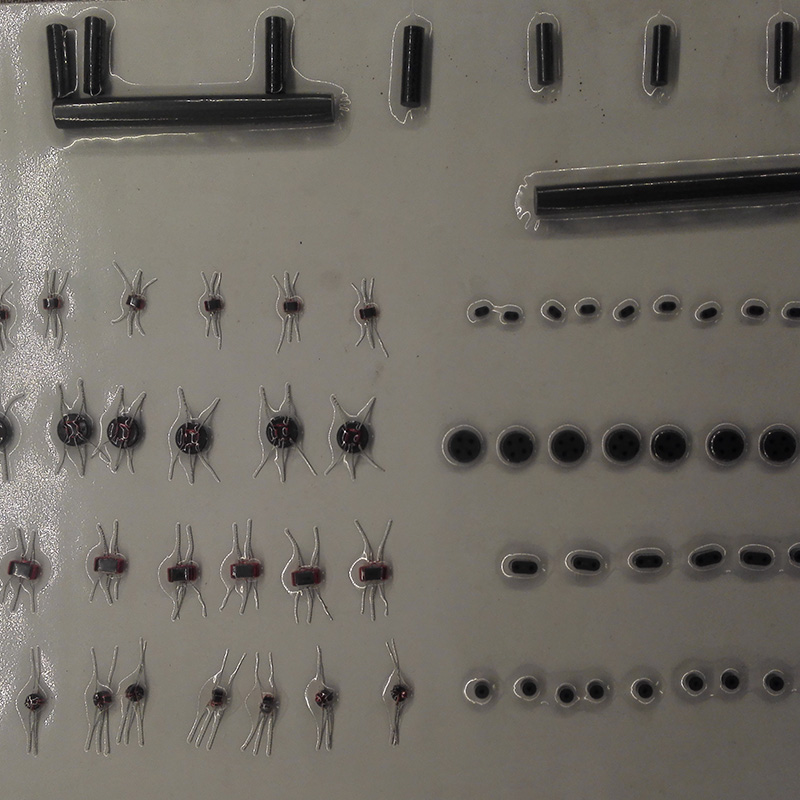

有線電視設備（CATV）用磁芯產品規格：
1）、單孔（DK）系列
| 材料編號 | 規 格 尺 寸（外徑*內徑*高） | ||
| 外徑 | 內徑 | 高 | |
| QR1K | 1.4 | 0.8 | 4.5 |
| QR1K | 1.4 | 0.8 | 5.5 |
| QR1K | 1.6 | 0.85 | 3.5 |
| QR1K | 1.6 | 1.0 | 4.8 |
| QR1K5 | 1.6（1.7) | 1.1 | 4.8 |
| QR1K | 1.6 | 1.1 | 5.2 |
| QR1K | 1.6 | 1.1 | 5.4 |
| QR1K5 | 1.6（1.7) | 1.1 | 6.4 |
| QR1K5 | 1.6 | 1.1 | 7.2 |
| QR1K | 1.7 | 0.8 | 4.25 |
| QR1K5 | 1.7 | 1.7 | 7.0 |
| QR1K | 1.8 | 0.8 | 8.0 |
| QR1K | 2.1 | 1.7 | 4.25 |
| QR1K | 2.5 | 1.5 | 1.2 |
| QR1K | 2.5 | 2.0 | 1.0 |
| KDN200 | 2.5 | 2.0 | 1.0 |
| KDN200 | 2.5 | 3.0 | 1.2 |
| QR2K | 2.54 | 1.5 | 1.0 |
| QR850 | 2.54 | 1.27 | 1.27 |
| QR2K-16 | 3.0 | 1.0 | 2.8 |
| QR800 | 3.0 | 1.0 | 3.0 |
| QR3K | 3.0 | 1.0 | 3.0 |
| QR2K5 | 3.0 | 1.0 | 6.0 |
| QR3K | 3.0 | 1.0 | 6.0 |
| QR800 | 3.0 | 1.2 | 1.32 |
| QR950 | 3.0 | 1.2 | 2.8 |
| QR3K | 3.0 | 1.2 | 2.8 |
| QR2K5 | 3.0 | 1.2 | 2.8 |
| QR1K | 3.0 | 1.2 | 3.0 |
| QR2K-16 | 3.0 | 1.2 | 3.0 |
| QR950 | 3.0 | 1.2 | 3.0 |
| QR1K | 3.0 | 1.2 | 3.0 |
| QR1K5 | 3.0 | 1.2 | 3.0 |
| QR2K5 | 3.0 | 1.2 | 3.0 |
| QR850 | 3.0 | 1.2 | 3.8 |
| QR2K | 3.0 | 1.2 | 4.0 |
| QR2K5 | 3.0 | 1.2 | 4.0 |
| QR3K | 3.0 | 1.2 | 4.0 |
| QR2K5 | 3.0 | 1.2 | 5.0 |
| QR3K | 3.0 | 1.5 | 3.0 |
| QR1K | 3.0 | 2.0 | 1.2 |
| QR3K | 3.0 | 2.0 | 1.2 |
| QR1K | 3.0 | 2.5 | 1.2 |
| KDN200 | 3.2 | 1.2 | 4.0 |
| QR3K | 3.5 | 0.85 | 3.8 |
| QR2K-16 | 3.5 | 0.85 | 4.2 |
| QR950 | 3.5 | 0.85 | 4.2 |
| QR2K-16 | 3.5 | 1.0 | 2.3 |
| QR2K | 3.5 | 1.0 | 2.4 |
| KDN200 | 3.5 | 1.0 | 3.0 |
| QR2K5 | 3.5 | 1.0 | 3.0 |
| QR2K-16 | 3.5 | 1.0 | 3.0 |
| QR850 | 3.5 | 1.0 | 3.0 |
| QR2K | 3.5 | 1.0 | 3.5 |
| QR1K | 3.5 | 1.0 | 4.0 |
| QR3K | 3.5 | 1.0 | 4.0 |
| QR2K-16 | 3.5 | 1.0 | 4.0 |
| QR2K | 3.5 | 1.0 | 4.0 |
| QR850 | 3.5 | 1.0 | 4.8 |
| QR950 | 3.5 | 1.0 | 4.8 |
| QR2K | 3.5 | 1.0 | 5.8 |
| QR2K | 3.5 | 1.0 | 6.0 |
| QR2K5 | 3.5 | 1.0 | 6.0 |
| QR1K5 | 3.5 | 1.0 | 8.0 |
| QR2K | 3.5 | 1.2 | 2.0 |
| QR3K | 3.5 | 1.2 | 2.0 |
| KDN200 | 3.5 | 1.2 | 3.0 |
| QR1K | 3.5 | 1.2 | 3.0 |
| QR2K5 | 3.5 | 1.2 | 3.0 |
| QR3K | 3.5 | 1.2 | 3.0 |
| QR1K | 3.5 | 1.2 | 3.1 |
| QR2K-16 | 3.5 | 1.2 | 3.2 |
| QR100 | 3.5 | 1.2 | 3.4 |
| QR100 | 3.5 | 1.2 | 3.5 |
| KDN200 | 3.5 | 1.2 | 3.5 |
| KDN600 | 3.5 | 1.2 | 3.5 |
| QR1K | 3.5 | 1.2 | 3.5 |
| QR3K | 3.5 | 1.2 | 3.5 |
| QR2K-16 | 3.5 | 1.2 | 3.5 |
| QR100 | 3.5 | 1.2 | 3.5 |
| QR100 | 3.5 | 1.2 | 4.0 |
| QR950 | 3.5 | 1.2 | 4.0 |
| QR1K | 3.5 | 1.2 | 4.0 |
| QR3K | 3.5 | 1.2 | 4.0 |
| QR2K-16 | 3.5 | 1.2 | 4.0 |
| QR2K | 3.5 | 1.2 | 4.0 |
| QR2K5 | 3.5 | 1.2 | 4.0 |
| QR3K | 3.5 | 1.2 | 5.0 |
| QR2K | 3.5 | 1.2 | 5.0 |
| QR850 | 3.5 | 1.2 | 6.0 |
| QR2K | 3.5 | 1.2 | 6.0 |
| QR3K | 3.5 | 1.2 | 6.0 |
| QR1K | 3.5 | 1.2 | 6.0 |
| QR1K | 3.5 | 1.5 | 3.0 |
| QR2K5 | 3.5 | 1.5 | 3.0 |
| QR1K | 3.5 | 1.5 | 4.0 |
| QR1K | 3.5 | 1.5 | 2.0 |
| QR800 | 3.5 | 1.6 | 1.5 |
| QR2K-16 | 3.7 | 1.0 | 4.4 |
| QR1K | 3.7 | 1.0 | 4.4 |
| KDN600 | 3.7 | 1.0 | 4.4 |
| QR1K | 3.8 | 1.2 | 3.2 |
| QR2K | 4.0 | 1.5 | 3.0 |
| QR3K | 4.0 | 1.5 | 3.0 |
| QR1K | 4.0 | 1.5 | 3.0 |
| KDN200 | 4.0 | 2.0 | 2.5 |
| KDN600 | 4.0 | 2.0 | 2.5 |
| QR1K | 5.0 | 1.5 | 5.0 |
2）、雙孔（TSK）系列
| 材料編號 | 規 格 尺 寸（長*寬*孔徑*高） | |||
| 長 | 寬 | 孔徑 | 高 | |
| QR1K | 3.3 | 2.0 | 0.8 | 1.45 |
| QR3K | 3.3 | 2.0 | 0.8 | 1.45 |
| QR3K | 3.5 | 1.3 | 0.8 | 2.0 |
| QR2K | 3.5 | 2.0 | 0.8 | 1.0 |
| QR2K | 3.5 | 2.0 | 0.8 | 1.3 |
| QR100 | 3.5 | 2.0 | 0.8 | 1.6 |
| QR2K | 3.5 | 2.0 | 0.8 | 1.6 |
| QR3K | 3.5 | 2.0 | 0.8 | 2.0 |
| QR100 | 3.5 | 2.0 | 0.8 | 2.0 |
| QR1K | 3.5 | 2.0 | 0.8 | 2.0 |
| QR2K | 3.5 | 2.0 | 0.8 | 2.0 |
| QR2K | 3.5 | 2.0 | 0.8 | 2.0 |
| QR2K | 3.5 | 2.0 | 0.8 | 2.3 |
| KDN200 | 3.5 | 2.0 | 0.8 | 2.35 |
| QR2K5 | 3.5 | 2.0 | 0.8 | 4.0 |
| QR800 | 3.5 | 2.0 | 0.9 | 1.78 |
| KDN600 | 3.5 | 2.0 | 1.0 | 2.0 |
| QR1K | 3.5 | 2.0 | 1.2 | 2.3 |
| QR3K | 3.5 | 2.3 | 0.8 | 2.0 |
| QR800 | 3.5 | 2.4 | 0.8 | 2.0 |
| QR3K | 5.0 | 3.0 | 1.2 | 1.7 |
| QR3K | 5.0 | 3.0 | 1.2 | 2.0 |
| QR1K | 5.0 | 3.0 | 1.2 | 2.0 |
| QR3K | 5.0 | 3.0 | 1.2 | 3.0 |
| KDN200 | 5.0 | 3.0 | 1.2 | 3.0 |
| QR1K | 5.0 | 3.0 | 1.2 | 3.0 |
| QR1K5 | 5.0 | 3.0 | 1.2 | 3.0 |
| QR2K | 5.0 | 3.0 | 1.2 | 3.0 |
| QR800 | 5.2 | 3.0 | 1.2 | 1.8（1.6） |
| QR1K | 5.5 | 3.0 | 1.2 | 3.0 |
| QR2K | 5.5 | 3.0 | 1.2 | 3.0 |
| QR2K | 5.5 | 3.0 | 1.2 | 3.0 |
| QR2K5 | 5.5 | 3.0 | 1.2 | 5.0 |
| QR1K | 6.5 | 3.0 | 1.2 | 2.0 |
| QR2K | 6.5 | 3.0 | 1.2 | 2.0 |
| QR1K5 | 6.5 | 3.0 | 1.2 | 2.5 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 |
| QR1K5 | 6.5 | 3.0 | 1.2 | 3.0 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 |
| QR2K5 | 6.5 | 3.0 | 1.2 | 3.0 |
| QR3K | 6.5 | 3.0 | 1.2 | 3.0 |
| QR2K | 6.5 | 3.0 | 1.2 | 4.0 |
| QR3K | 6.5 | 3.0 | 1.2 | 4.0 |
| QR950 | 6.5 | 3.0 | 1.2 | 3.0 |
| QR2K5 | 6.5 | 4.0 | 1.2 | 3.0 |
| QR2K | 7.0 | 3.0 | 1.5 | 4.0 |
| QR2K | 7.0 | 3.0 | 1.8 | 4.0 |
| QR1K | 7.0 | 4.0 | 1.2 | 3.0 |
| QR800 | 7.0 | 4.0 | 1.5 | 6.2 |
| QR1K | 7.0 | 4.0 | 1.8 | 3.0 |
| QR1K | 7.0 | 4.0 | 2.0 | 3.0 |
| QR800 | 7.0 | 4.0 | 2.0 | 4.0 |
| QR1K | 7.0 | 4.0 | 2.0 | 3.0 |
| QR850 | 7.0 | 6.5 | 1.5 | 4.0 |
| QR1K | 7.0 | 4.0 | 1.5 | 4.0 |
| QR1K | 7.0 | 4.0 | 1.5 | 6.0 |
| QR3K | 7.0 | 4.0 | 1.5 | 3.0 |
| QR2K | 7.0 | 4.0 | 1.5 | 4.0 |
| QR2K5 | 7.0 | 4.0 | 1.5 | 6.2 |
| QR1K | 7.0 | 4.0 | 1.8 | 5.0 |
| QR1K5 | 7.0 | 4.0 | 1.8 | 6.0 |
| QR1K | 7.0 | 4.0 | 1.8 | 6.4 |
| QR3K | 7.0 | 4.0 | 1.8 | 6.4 |
| QR2K | 7.0 | 4.0 | 2.0 | 4.0 |
| QR1K | 13 | 8.0 | 3.0 | 9.0 |
| QR850 | 13 | 8.0 | 4.0 | 6.0 |
| KDN200 | 13 | 8.0 | 4.0 | 14.5 |
| QR1K | 13 | 8.0 | 4.0 | 6.0 |
| QR1K | 13.5 | 7.5 | 4.0 | 6.0 |
3）、孔（4K）系列
| 材料編號 | 規 格 尺 寸（外徑*內徑*高） | ||
| 外徑 | 內徑 | 高 | |
| QR800 | 4K6 | 1.2 | 3.0 |
| QR2K | 4K8 | 1.2 | 2.0 |
| QR2K5 | 4K8 | 1.2 | 2.0 |
| QR3K | 4K8 | 1.2 | 2.0 |
| QR2K5 | 4K8 | 1.5 | 2.5 |
| QR2K | 4K8 | 1.5 | 3.0 |
| QR1K | 4K8 | 1.2 | 4.0 |
| QR1K | 4K8 | 1.5 | 5.0 |
| QR2K | 4K8 | 1.5 | 5.0 |
| QR3K | 4K8 | 1.5 | 5.0 |
4）、環形（H）系列
| 材料編號 | 規 格 尺 寸（外徑*內徑*高） | ||
| 外徑 | 內徑 | 高 | |
| QR1K | 1.4 | 0.8 | 2.5 |
| QR1K | 1.7 | 0.8 | 3.0 |
| QR1K | 2.15 | 1.65 | 3.5 |
| QR1K | 2.54 | 1.5 | 1.0 |
| QR1K | 2.8 | 1.8 | 8.7 |
| QR1K | 3.3 | 2.55 | 3.5 |
| QR1K | 3.5 | 1.78 | 1.2 |
| QR1K | 3.5 | 2.0 | 1.8 |
| QR800 | 4.0 | 2.0 | 2.0 |
| KDN200 | 4.0 | 2.0 | 2.8 |
| QR1K | 4.0 | 2.0 | 3.0 |
| QR1K | 4.0 | 2.0 | 5.0 |
| QR1K | 4.3 | 3.05 | 3.5 |
| QR2K | 5.0 | 2.0 | 2.5 |
| QR1K | 5.0 | 3.0 | 1.5 |
| QR1K | 5.0 | 3.0 | 5.0 |
| QR1K | 6.0 | 3.0 | 2.0 |
| QR850 | 6.0 | 3.0 | 3.0 |
| QR3K | 6.0 | 3.0 | 5.0 |
| QR3K | 6.0 | 3.0 | 6.0 |
| QR2K | 6.0 | 3.0 | 10 |
| QR2K | 7.0 | 4.0 | 3.0 |
| 材料編號 | 規 格 尺 寸（外徑*內徑*高） | ||
| 外徑 | 內徑 | 高 | |
| QR850 | 7.0 | 4.0 | 3.0 |
| QR1K | 7.0 | 4.0 | 5.0 |
| QR1K | 7.0 | 5.0 | 9.0 |
| QR1K5 | 8.0 | 4.0 | 5.5 |
| QR1K5 | 8.0 | 4.0 | 8.0 |
| QR800 | 9.5 | 4.5 | 5.0 |
| QR2K | 9.5 | 5.5 | 3.3 |
| QR1K | 10 | 5.0 | 5.0 |
| QR1K | 10 | 6.0 | 3.7 |
| QR1K | 10 | 6.0 | 5.0 |
| QR800 | 10 | 6.0 | 5.0 |
| QR1K5 | 10 | 6.0 | 10 |
| QR800 | 10 | 6.0 | 10 |
5）、磁棒（ZY）系列
| 材料編號 | 規 格 尺 寸（外徑*高） | 備 注 | |
| 外徑 | 高 | ||
| QR800 | 2.0 | 10 | |
| QR1K | 2.0 | 10 | |
| QR1K | 2.0 | 10 | 引線 |
| KDN200 | 2.0 | 15 | |
| QR2K | 2.0 | 16 | |
| QR1K | 2.4 | 12 | |
| QR1K | 2.4 | 16 | |
| QR1K | 3.0 | 8.0 | |
| QR1K | 3.0 | 10 | |
| QR1K | 3.0 | 12 | |
| QR1K | 3.0 | 14 | |
| KDN200 | 3.0 | 15 | |
| KDN600 | 3.0 | 15 | |
| QR1K | 3.0 | 16.5 | |
| QR2K | 3.0 | 16.5 | |
| QR2K | 3.0 | 18 | |
| QR1K | 3.0 | 18.5 | |
| KDN200 | 4.0 | 6.0 | |
| QR1K | 4.0 | 14 | |
| QR2K | 4.0 | 16 | |
| KDN200 | 4.0 | 18 | |
| QR1K | 4.0 | 20 | |
| QR2K | 4.0 | 20 | |
| KDN200 | 4.0 | 20 | |
| QR2K | 4.0 | 22 | |
| QR2K | 4.0 | 25 | |
| KDN200 | 5.0 | 5.5 | |
| QR2K | 5.0 | 15 | |
| QR1K | 5.0 | 18 | |
| QR800 | 5.0 | 20 | |
| QR2K | 5.0 | 25 | |
| QR2K | 5.0 | 30 | |
| QR1K | 6.0 | 20 | |
| QR2K | 6.0 | 27 | |
| QR800 | 6.0 | 28 | |
| QR800 | 6.0 | 30 | |
| QR1K | 6.0 | 30 | |
| QR800 | 6.0 | 34 | |
| QR1K | 6.0 | 38 | |
| QR1K | 6.0 | 50 | |
| QR1K | 6.3 | 34 | |

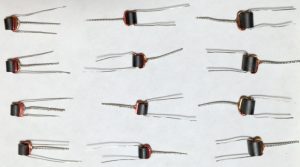

6)、繞制品單孔系列
| 材料編號 | 規 格 尺 寸（外徑*內徑*高） | 匝數比 | ||
| 外徑 | 內徑 | 高 | ||
| QR1K | 3.0 | 1.2 | 3.0 | 2：2 |
| QR1K | 3.0 | 1.2 | 3.0 | 2.5：2.5 |
| QR1K | 3.0 | 1.2 | 3.0 | 1：4 |
| QR1K | 3.0 | 1.2 | 3.0 | 1：2：1 |
| QR1K | 3.0 | 1.2 | 3.0 | 3：3 / 2：2 |
| QR1.5K | 3.0 | 1.2 | 3.0 | 2.5：2.5 |
| QR1.5K | 3.0 | 1.2 | 3.0 | 1.5：4.5 |
| QR100 | 3.0 | 1.2 | 3.0 | 1：2：1 |
| QR800 | 3.0 | 1.2 | 3.0 | 1.5：3.5 |
| QR800 | 3.0 | 1.2 | 3.0 | 1：2 |
| QR800 | 3.0 | 1.2 | 3.0 | 1：3 |
| QR1K | 3.0 | 1.2 | 3.0 | 2.5：2.5 |
| QR1K | 3.0 | 1.2 | 3.8 | 1.5：4.5 |
| QR1K | 3.0 | 1.2 | 3.8 | 2.5：2.5 |
| QR950 | 3.5 | 0.85 | 4.2 | 1.5：1.5 |
| QR1K | 3.5 | 1.0 | 3.0 | 1.5：4.5 |
| QR1K | 3.5 | 1.0 | 3.0 | 2.5：2.5 |
| QR1K | 3.5 | 1.0 | 3.0 | 1.5：4.5 |
| QR1K | 3.5 | 1.0 | 3.0 | 1.5：3.5 |
| QR0.1K | 3.5 | 1.2 | 3.4 | 1.5：4.5 |
| QR0.1K | 3.5 | 1.2 | 3.4 | 2.5：3.5 |
| QR0.1K | 3.5 | 1.2 | 3.5 | 1.5：4.5 |
| QR100 | 3.5 | 1.5 | 3.5 | 1.5：4.5 |
| QR0.1K | 3.5 | 1.2 | 4.0 | 2.5：2.5 |
| QR1K | 3.5 | 1.2 | 4.0 | 4.5T |
| QR2K | 3.5 | 1.2 | 4.0 | 1.5：1.5 |
| QR2K | 3.5 | 1.2 | 4.0 | 0：1 |
| QR3K | 3.5 | 1.2 | 4.0 | 1.5：1.5 |
| QR3K | 3.5 | 1.2 | 4.0 | 1.5T |
| QR100 | 4.0 | 1.5 | 2.0 | 2：2：2：2 |
| QR100 | 4.0 | 1.5 | 2.0 | ? 4：4 |
| QR100 | 5.0 | 2.2 | 3.0 | 7：7 |
| QR100 | 5.0 | 2.2 | 3.0 | 7：7：7 |
7）繞制雙孔系列
| 材料編號 | 規 格 尺 寸（長*寬*孔徑*高） | 匝數比 | |||
| 長 | 寬 | 孔徑 | 高 | ||
| QR2K | 3.5 | 2.0 | 0.8 | 2.0 | 2.5：2.5 |
| QR10K | 3.5 | 2.0 | 0.8 | 2.0 | 1：2 |
| QR800 | 3.5 | 2.0 | 0.8 | 2.0 | 2T / 5T |
| QR800 | 3.5 | 2.0 | 0.8 | 2.0 | 3T / 3T |
| QR800 | 3.5 | 2.0 | 0.8 | 2.0 | 2.5T / 2.5T |
| QR2K | 3.5 | 2.0 | 1.0 | 2.0 | 1：4 / 4：1 |
| QR2K | 3.5 | 2.0 | 1.0 | 2.0 | 1：3 / 3：1 |
| QR2K | 3.5 | 2.0 | 1.0 | 2.0 | 1：4 / 4：2 |
| QR1K | 5.0 | 2.0 | 1.2 | 3.0 | 4：4 |
| QR1K | 5.0 | 3.0 | 1.2 | 2.0 | 3.5：3.5 |
| QR100 | 5.0 | 3.0 | 1.2 | 2.0 | 0：4 / 4：0 |
| QR100 | 5.0 | 3.0 | 1.2 | 2.0 | 0：5 / 5：0 |
| QR100 | 5.0 | 3.0 | 1.2 | 2.0 | 4：5 / 5：4 |
| QR100 | 5.0 | 3.0 | 1.2 | 2.0 | 2.5：2.5 |
| QR100 | 5.0 | 3.0 | 1.2 | 2.0 | 4：3 |
| QR100 | 5.0 | 3.0 | 1.2 | 2.0 | 3.5：3.5 |
| QR200 | 5.0 | 3.0 | 1.2 | 2.0 | 1.5：1.5 / 2.5：2.5 |
| QR1K | 5.0 | 3.0 | 1.2 | 3.0 | 4：4 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 | 1：3 / 4：2 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 1：4 / 2：4 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 | 1：3 / 4：2 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 | 1：4 / 4：1 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 | 1：4 / 5：1 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 | 1：5 / 5：1 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 | 0:3 / 4:1 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 | 1：3/3：1 |
| QR1K | 6.5 | 3.0 | 1.2 | 3.0 | 1：4 / 4：2 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：4 / 4：0 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 1：3 / 4：1 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：3 / 5：1 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：3 / 4：0 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：3 / 5：0 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：3 / 6：1 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 3：3 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：6 / 6：0 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：8 / 8：0 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 2：2 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 1：4 / 5：1 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：3 / 7：1 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：5 / 5：0 |
| QR2K | 6.5 | 3.0 | 1.2 | 3.0 | 0：3 / 3：0 |
| QR2K | 7.0 | 3.0 | 1.5 | 3.0 | 2：2：4 |
